Singer XL-6000 Accessories Sew & 6x10 Embroidery Machine XL6000 Auto: Tension, Self Winding Bobbin, Threader, Cont. Hoop, Format Convert, PC Cable

• Use Robison Anton thread with cone base on XL6000 and without cone base on XL5000 for best results with the thread exchanger.

• The Singer XL6000 is the same as the Singer XL5000 with these additional features:

• Continuous Hoop and Card 5006 (included)

• Larger base thread exchanger provides faster and quieter switching between two color thread spools during embroidery

• Instructions are now a pop up on the screen making them much easier to find & understand

• Has the conversion tool for computer design transfer included

• Improved built-in lettering

• Ability to upgrade the XL6000 in the future via smart card

• Automatic Thread Exchanger switches, rethreads and continues sewing between two spool colors

• Auto Thread Exchanger-allows switching between two color thread spools during embroidery. After one color has been sewn, the XL6000 stops, rethreads itself with the new color then resumes embroidery.

• 3 Types of Bobbin Winding:
  1. Winding on top of machine with regular Class 15 bobbins
  2. Winding in place on an Endless Bobbin from the needle thread
  3. Winding in place on an Endless Bobbin from a separate spool in the Wind-in-Place Bobbin System underneath

• Automatic Threading System-allows the XL6000 to switch between two color thread spools during embroidery.

• Continuous Hoop-allows you to embroider border designs without removing the hoop from your machine to re-hoop fabric. You simply raise the latch and slide the fabric to the next setting. The machine puts a reference point on the fabric so it will easily line up and realign the needle.

• Multi Hooping-Provides the ability to do large area designs up to 10" x 18" (250mm x 450mm) total size. Create your layout on screen to ensure precisely matched designs.

• Full-Color 3-D LCD Screen is easy to read and will display your design patterns.

• Pictogram & Icon-Based Menus-Includes user instructions and help screens that guide you every step of the way.

• Direct Computer Interface-allows you to connect your computer directly to your Singer. Eliminates the need for card converter and reader-writer boxes!

• Ability to string up to 120 characters or letters-great feature when sewing poems and sayings

• Can embroider fonts from 7mm to 60mm which can be resized in 1mm increments

• Unlimited increment rotation-Ability to easily rotate designs and letters in 1-degree increments for perfect positioning.

• Built-in embroidery resizing from 90%-120%-Allows you to customize the size of built-in designs, reducing them to 90% or enlarging them to 120%

• Vertical & Horizontal positioning for Lettering eliminates having to do Vertical lettering one letter at a time!

• Singer patented quilting stitches-An ingenious stitch that creates the look of hand quilting and can be customized to various stitch lengths. Quilting made easy with the extra high lift presser bar, manual drop feed lever, and increased sewing surface.

• Sideways sewing-Allows you to sew in four different directions (forward, backward, left, & right) via on-screen control, instead of pivoting your fabric.

• Extra-extra high lift pressure bar-The knee lift raises the machine presser foot for hands-free positioning and pivioting of fabric while sewing.

• Needle up/Needle down-Provides the ability to quickly and easily stop & pivot during sewing

• Drop feed-deactivating the feed mechanism so that material is moved by YOU, not the machine

• Sewing Odometer-counts the stitches sewn by the XL 6000. A helpful feature for knowing when to change needles and have the machine serviced.

• Up to 800 stitches per minute

• Variable Sewing Speed-Allows control of sewing speed according to the complexity of your project. Select higher speeds for regular sewing and lower speeds for intricate embroidery.

• Computer-controlled thread tension-Automatic, computer-controlled thread metering system delivers the precise amount of thread for the optimal appearance of each stitch.

• Embroidery Area 6-1/2" x 9-1/2"

• Accepts up to 128 colors in a single hoop-allows single patterns to be sewn in up to 128 colors

• Built-In Stitch & Buttonhole choices-Review your choices on-screen and simply touch the one your want. Buttonholes can be perfectly sewn in one step to match the size of any button. A variety of stitch patterns & buttonhole styles are available.

• Built-In Designs
  -Embroidery fonts including a 4" tall block & beautiful script.
  -The regular fonts are up to 2" (10mm-50mm) including Shadowed letters.
  -Monogram motiffs
  -Over 100 beautiful floral designs
  -Large selection of borders & frames

• Large sewing surface area to accommodate fabrics & projects more easily

• Conversion Tool Software CD (Converts digitized designs to and from most home embroidery formats)

• Blindstitch Hem Foot

• Button Sewing Foot

• Buttonhole Foot

• Cording Foot

• Embroidery & Darning Foot

• Even Feed Foot

• General Purpose Foot

• Invisible Zipper Foot

• Overcastting Foot

• Rolled Hem Foot

• Zipper Foot

• Needles

• Bobbins

• Buttonhole Opener/Brush

• Link Brush

• Quilting Guide

• Screwdriver (special)

• Spool Cap (large)

• Spool Cap (small)

• 3 hoops PLUS the Continuous Hoop

• Bonus Data-Link Transfer Cable Included - Transfer designs directly from your computer to the XL-6000 without using a reader/writer box!


Singer Exclusive Endless Bobbin-Provides continual bobbin winding during embroidery. If the bobbin runs out of thread, the XL 6000 stops, rewinds the bobbin until it's full, and resumes stitching exactly where it left off.

Singer Exclusive Wind-in-Place Bobbin System-Winds thread from the top spool directly to the bobbin during the regular sewing mode.

Singer Exclusive Automatic Threading System-Threads the entire tension assembly making it nearly impossible to thread incorrectly! With the touch of a button, machine threads itself, from the top of thread spool through the needle's eye.

Small, Medium, & Large Included Hoops

Multi Hooping-Produces large area designs up to 10"x18" (250mm x 450mm). Create your layout on screen ensuring precisely matched designs.

Full-Color 3-D LCD Screen is easy to read and displays your design patterns.

Pictogram & Icon-Based Menus Includes user instructions & help screens that guide you every step of the way. (Similar to Folders on a Computer)

Singer-patented Quilting Stitches-An ingenious stitch that creates the look of hand quilting & can be customized to various lengths.

Direct Computer Interface Further expand your creative capabilities by connecting your Computer directly to your Singer and using Singer's PSW 2.0 to download designs from your computer to the XL6000.

The XL 6000 has the ability to string up to 120 characters or letters. This features makes it easy to sew poems & sayings.

Built-in Embroidery Resizing-Customize the design to fit you rproject. Allows you to size designs from 90%-120%.

The XL6000 can embroidery fonts from 7mm to 60mm. These fonts can be resized in 1mm increments.

Unlimited Increment Rotation-Ability to rotate designs & letters in 1-degree increments for perfect positioning.

Extra-Extra High Lift Presser Bar-The knee lift raises the machine presser foot for hands-free positioning & pivoting of fabric while sewing.

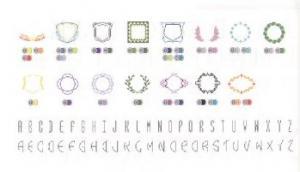

Singer XL6000 Borders

Floral Stitches

Alphabet, Numbers, and Grids

Lettering and Floral Stitches

Stitch Patterns (Main Unit)

Large Size Patterns & Single Regular Patterns

Alphabet

Configuring USB/Serial Converter Cable These directions are to be used when the consumer has had to purchase an USB/Serial cable to connect their software or XL-6000® to the computer with Windows 98 through XP. They also need to connect the nine-pin serial cable that came with the PSW® or the XL-6000®. (This is a Null Modem cable). When trying to open the PSW® they will receive a message – “Card Writer Not Found” or if using the Sew-Ware Conversion Tool® the transmission will not go through. Once this procedure is completed, it may be necessary to re-install the software (especially the PSW). In the Conversion Tool in the Transmit to Machine dialog box be sure to set the com port setting to the same number that the cable has been set.
