INCLUDED: Organ 135x5 100 Interchangable Needles: 1901 1955 135x7 DPx5 for Singer 20U Type

Product Description


THE LATEST MODEL NUMBER IS 20U-109, FORMERLY KNOWN AS Singer 20u33, 20u73.

Set Up Assembled 1/2HP Power Stand, 110/220V Switch, Flatbed 15-3/4x7", 1/2" Foot Lift, 6mm Stitch Length, up to 2500 SPM, JAPAN Hook

Note: Use needles from Size 9-19 for regular sewing threads, but not use this machine for upholstery which requires larger size 20-25 needles and #69+ thread which are for walking foot and needle feed machines.

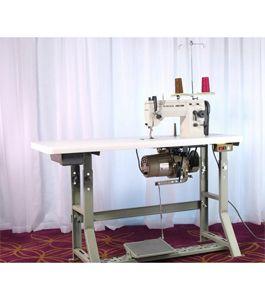

The Singer 20U73 Now 20u109 Sewing Machine is a top of the line Commercial Grade Sewing Machine. This Machine sews 2500 stitches per minute, and contains a 110V standard clutch motor under the table. This is a single needle lockstitch zig-zag machine that can be used for a wide range of materials from light to medium to heavier fabrics, except upholstery which requires a built in walking foot. Free hand embroidery with our without a manual hoop, can also be accomplished on these varieties.

  • Zigzags Up To 9mm Zig Zag Width
  • Takes size 9 to 19 needles:
  • Organ 135x7, 135x9 or Singer 1910 or 1955 Needles
  • Sews Up To 2500 Stitches Per Minute Straight Stitch
  • Sews up to 2000 Stitches Per Minute Zigzag
  • Single Needle Lockstitch With Reverse Lever
  • With Power Stand & 1/2 Hp Motor 1725 Rpm 110V
  • All-Metal Industrial Rotary Hook
  • Knee Lever For Presser Foot Or Zig-Zag
  • Left, Center, Right Needle Positions

    Machines of class 20U have been in production for over 30 years. They offer the versatility of medium speed straight stitching, zig-zag stitching, and satin stitch embroidery.

  • SS/ZZ Tailoring & Drapery Machine
  • Not For Upholstery, Exterior Fabrics or Upholstery Thread
  • A needle clamp screw (part #54BH) or Superior 541788 is needed for the following attachments: buttonhole foot, walking foot, and ruffler foot
  • Includes 1/2HP Clutch Motor Power Stand, 1725RPM, 110/220V

    Perfect straight stitching. Needle bar frame locking clamp engaged by a quick 1/4 turn of a knob.
    Built in bobbin winder.
    Hook automatically advances and retards timing according to zig zag width (except 20U51, 20U53)
    Independently adjustable forward and reverse stitch lengths.
    Buttonholes produced by means of right, center, and left needle positions, on most models.
    Extra wide 9mm zig zag bight on all models; 12mm available on some models.
    Knee lifter to raise foot when set to tang 1. Allows control of embroidery when set to tang 2.

    Satin stitch embroidery features:
  • Knee control allows operator to vary width of zig zag or satin stitch WHILE SEWING.
  • Zig zag or satin stitch can vibrate from left, center, or right, on most models.
  • Zig zag or satin stitch bight can be set within a minimum and maximum range.
  • Zig zag plate and foot, straight stitch plate and foot.
  • Zig zag/satin stitch and straight stitch feed dog included.

    Accessory feet included.
  • Straight-stitch foot
  • Zig-zag foot
  • Zipper foot
  • Manual buttonhole foot
  • US Warranty 90 Days labor on defects in materials and workmanship.
  • Non-US Warranty: 30 days parts and labor
Specifications
Click HERE for Singer 20u109 Instruction Manual and Parts List

Similar Singer 20u Manual PDF for reference only

  • Machines of class 20U have been in production for over 30 years
  • Offers the versatility of medium speed straight stitching,
  • zig-zag stitching, satin stitch embroidery and free-motion work
  • For stitching and embroidering light to medium-heavy weight materials
  • Designed for natural and synthetic fabrics and light weight leather, but not upholstery
  • Perfect straight stitching
  • Needle bar frame straight stitch locking clamp engaged by a quick 1/4 turn of a knob
  • Built in bobbin winder
  • Hook automatically advances and retards timing according to zig zag width up to 9mm
  • Independently adjustable forward and reverse stitch lengths
  • Buttonholes produced by means of right, center, and left needle positions
  • Knee lifter to raise foot or control zig-zag width
  • Straight stitch and up to 9 mm zig-zag stitches
  • Zig zag plate, straight stitch plate, and embroidery/darning plate included
  • Zig zag/satin stitch and straight stitch feed dog included
  • Uses 135x7 needles size 9-19
  • SINGLE NEEDLE
  • LOCKSTITCH
  • ROTARY HOOK
  • DROP FEED
  • MEDIUM SPEED
  • AFFORDABLE PRICE
  • EXTRA WIDE BIGHT
    Bed dimensions: 15 3/4''x7''. Dimensions: 40''H x 48''W x 20''D.
    *90 Day Warranty
    *Takes sizes 10-19 needles.
    *Zig-zag stitch width 9mm.
    *Knee lift can be used to raise presser foot or set zig-zag width.
    *Built in bobbin winder.
    *Comes with a needle position control device which makes it possible to produce buttonholes.
    *Wick oil system, machine will need to be oiled every 8 hours.





    Click HERE for You Tube Videos on Singer 20u Type Straight Stitch Zigzag Sewing Machines.

    Please review our Freight LTL Shipping Policies
    Ships Ground Freight only.
Included Accessories
The Accessories included are a thread stand, standard foot, straight foot, straight stitch plate, embroidery plate, narrow hemmer, zipper foot, manual buttonhole foot, 2 thread caps and nets, and a peg.

  • Straight-stitch foot
  • Zig-zag foot
  • Zipper foot
  • Manual buttonhole foot
  • Tacony 1/2HP Power Stand Table with Legs, 1725RPM 110V Clutch Motor
Other Images

icon For stitching and embroidering light to medium-heavy weight materials. Designed for natural and synthetic fabrics and light weight leather.

Comparisons

The newer 20u type machines including the Pfaff 9020 have a threaded hole in the right hand side of the needle bar for the needle set screw to hold the needle in flush mounted with no extension. In order to use the old style 20u needle bar clamp (GR484) with extended barrel to the right, the needle bar needs to have a non-threaded hole for the old style needle bar clamp to fit. This is why we would have to change both the clamp and the needle bar to use any buttonhole, ruffler and walking foot attachments available. This involves installing reseting the needle bar heigth and orientation which some customers may have a problem with. The buttonhole attachment is #IBA10. The ruffler attachment is G9 and the walking foot attachment is RWA5

F.A.Q.

From: Andrea Young To: [email protected] Sent: Monday, November 05, 2007 6:31 AM Subject: General: Ruffler Foot for Singer 20U Hi Do you have a Ruffler Foot attachment to fit a Singer 20U Industrial Machine. If you do could you please advise the price and price to ship to the UK. Many Thanks Andrea
Andrea, newer white color model Singer 20u's and clones no longer have the barrel extension to the right the needle bar clamp to support any ruffler or walking foot attachments. The needle set screw is now flush with the right hand side of the needle bar clamp, and there is no extension to support the fork on ruffler and walking foot attachments. Does your version of Singer 20u in the UK have the barrel extension to the right of the needle bar clamp? Older blue and gray models made in Japan by Singer Nikko did. The newer white models made in China by Shanggong do not. Please advise. John Douthat, AllBrands 11/06/07
