*70% More Thread, Highly sophisticated & brilliantly simple Our newly-designed 4 Series offers the innovative features and functions.
Features and Functions:
- BERNINA Hook with 9mm stitch width
- Front-load Jumbo Bobbin - holds 70% more thread and a regular bobbin
- Automatic thread cutter
- 1,249 stitch patterns
- BERNINA Stitch Regulator compatible
- Simple, modern operation
- 7" between the needle and the throat of the machine
- Modern, Color Touch Screen for easy navigation
- Maximum speed of 900 stitches per minute
- BERNINA Hook for quiet and precise sewing, quilting and embroidering
1249 Total Stitches:
27 Practical
9 Buttonholes
2 Eyelets
1 Sew-on Button Program
223 Decorative
27 Quilting
5 Alphabets
2 Darning Programs
Machine Features:
7" to the Right of the Needle
4.3" Centrally Located Color Cap-touch Screen
9 mm Maximum Stitch Width
6 mm Maximum Stitch Length
11 Needle Positions
8 LED Lights
Automatic Thread Cutter
Weight: 20.9 lbs.
Dimensions (L/W/H):
16.7" x 7.9" x 12.9"
Workspace Height: 4.3"
1 USB Port
Import/Export Stitches via USB
Bernina 480 Webpage
- US Warranty 90 Days labor on defects in materials and workmanship.
- Non-US Warranty: 30 days parts and labor
Bernina 480 Instruction book pdg
Designer Yvonne Reichmutz aka “YVY” talks about the BERNINA 480 (short version)
Designer Yvonne Reichmutz aka “YVY” talks about the BERNINA 480 (2.5 minute version)">"The B 480 is an essential part of my studio."
Yvonne Reichmuth — "YVY" Swiss Fashion Designer
Touch screen and functions of the B 435, B 475 QE, B 480 and B 485
Watch over 75 video tutorials on this machine from sewingmastery.com below:
Tip: Inserting the Bernina Jumbo Bobbin Hook: Here is a super easy way to FLIP the hook back into the machine. by Sara at SewingMastery.com As a teacher, I have been searching for an easy way to help students insert the new magnetic hook after they have finished oiling their Bernina’s with the new Jumbo Bobbin hook. Today, I figured out the perfect solution. Sara
See Sara's Solution On Video HERE
Technically Speaking: BERNINA 535, 480, 475 Top
Tension Not Releasing
Recently we were made aware of an intermittent issue with top tensions not releasing after a thread cut, thus causing
tension issues and bird nesting.
When an operator selects the auto thread
cutter and does not wait until the cutting
process is complete, lifts the presser foot
by hand or by FHS, there is a sporadic
chance the top tension is not releasing.
We have also seen the hour glass icon
spinning.
With machines that have an automatic
presser foot lifter the timing between cutter and lifter action is governed by the
FW, therefore we do not see such issues.
For right now we can provide this solution.
If such issues appear, please let the consumer know to slow down and let the
machine cut the thread first before the
presser foot is lifted.
Lowering and then raising the presser
foot bar should release the top tension
disks. This may take 2-3 times to release.
If the hourglass appears it maybe required to reboot the machine.

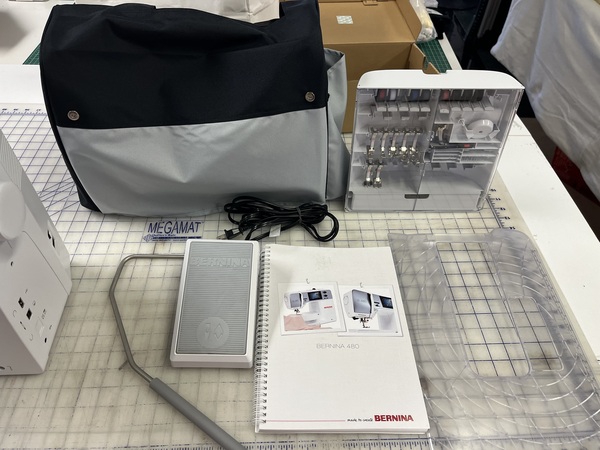

See photos for included accessories
Included accessories
Included accessories
Included accessories
Included accessories
Automatic Thread Cutting
7" from needle to neck for quilting
Adjustable Presser foot Pressure for different weights of fabric.
Easy to navigate color touch screen.
Hands Free knee lifter for raising and lowering presser foot and feed dogs.
9mm stitch width. Jumbo bobbin holds 70% more tread.
