Product Description

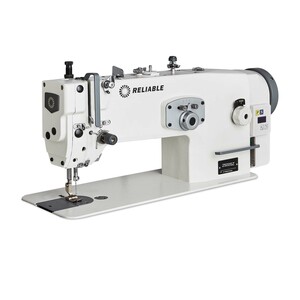

For the speed demons that need more juice than a traditional 20U style sewing machine, the 2500SZ is our newest high-speed self-oiling single needle zig-zag sewing machine. With its 2500RPM top speed, it is perfect for appliqué, decorative stitching, lighter canvas, or synthetics.

The 2500SZ is equipped with our advanced Direct Drive Technology. Direct drive eliminates the belt (so there’s never a need to replace it) provides superior speed control, positions the needle in the down position to save time, and allows even the novice to be sewing like a pro.

SINGLE NEEDLE LOCKSTITCH ZIG-ZAG
When the sewing task requires a zig-zag stitch, and it’s possible to sew at a higher speed, we recommend the 3100TL. Because of the higher speed, it is best for sewing applications where productivity is important. It is suitable for sewing from light to medium weight fabric.

QUALITY YOU CAN COUNT ON
For sewing appliqué, lighter canvas, and synthetics, the 3100TL with stitch width up to 10 mm and a 15 mm foot lift offers the whole package. Low noise and vibration design, outstanding build quality (Made in Taiwan) and reliability and the industries #1 DC servomotor.

FEATURES
• Direct Drive Technology
• Programmable display
• Maximum Sewing Speed 2,500 RPM
• Stitch Length 0.2” / 0 - 5 mm
• Stitch Width 0.39” / 10 mm
• Needle System # 135 x 17
• Work Space11.25” / 28.6 cm
• Bed Size18.5 / 47 cm

Reliable Warranty Information (.PDF)

Please review our Freight LTL Shipping Policies Ships Ground Freight only.* For delivery please select options. "Lift Gate" which means a goods lifting platform installed at the rear of the delivery truck that facilitates the unloading of cargo from truck bed to the ground. Most shipments will require a lift gate, if there is not a loading dock, or fork lift available for delivery.
Ships LTL Ground freight only No Expedited Methods
  • US Warranty 1 year parts, 90 days labor on defects in materials and workmanship.
  • Non-US Warranty: 30 days parts and labor
Specifications
Electrical: 110V or 220V
Maximum sewing speed: 2,800 rpm
Stitch length: 0-5 mm
Stitch width: 10 mm
Pressure foot lift By hand: 8mm
By knee: 15 mm
Needle system #: 135 x 7
Work space: 11.25”
Bed size: 18.5”
Direct Drive
Stitch Dial Regulator
Reverse Lever
Stitch width dial
Lubrication: Automatic
Warranty Reliable 1 Year Warranty
Included Accessories
  • Instruction manual
  • Tool kit, drawer, thread stand
Other Images

icon BUILT FOR SPEED The 2500SZ is built for higher speed applications where where productivity is important. Whether its a simple zigzag or applique function, the 2500SZ has got you covered.

icon STITCH WIDTH DIAL The stitch width dial allows users to modify the width of the zig-zag according to their needs, up to 10 mm.

icon SEW WITH EASE The 2500SZ direct drive motor allows you to program both the speed and needle position of the machine. This eliminates unwanted thread burn and allows for a smoother, more precise sewing experience.

icon Feet Needle

icon INCLUDES UBERLIGHT FLEX At no additional cost, we are including our all-new UberLight™ Flex 3100TL LED task and sewing light when you purchase the 2500SZ sewing machine. Our most advanced take sewing light is designed to see more with no glare and less eye strain.

icon SUPERIOR STAND Others skimp on the stand components, we don’t. We use only 100% plywood in our tabletops (not cheap particle board) and our K-legs are made from heavy-duty 3/32" steel.

Comparisons

Product Comparison(.pdf)

F.A.Q.

What do I check when the thread breaks?
Poor thread quality (too old, or not strong enough).
Check for defective needle/needles (bent or blunt).
Make sure you are using the correct needle system, See owners manual.
Check for the correct passing of the thread.
Check thread tension, could be to tight or to loose.
Check if thread has jumped out from between the tension discs.
Check condition of take-up spring (check spring)
Sewing area very dirty, remove needle plate and clean.
Check bobbin and bobbin case for damage, replace if needed.
Bobbin case may be very dirty; clean the inside of the bobbin case.
Check for sharp parts or edges where the thread passes.
Check for overheating needle/needles.
Check hook timing. See owner’s manual.

What do I check when the needles are breaking?
Select correct needle size for the type of work being done,
Make sure you are using the correct needle system, See owners manual.
Make sure the needle is inserted correctly.
Check pressure foot is inserted correctly, and lined up with needle hole.
Check bobbin in bobbin case, bobbin could be spread too wide, replace with new bobbin.
Check needle guard setting. See owner’s manual.
Check hook timing. See owner’s manual.
Is the machine the correct type for what you are trying to sew?

What do I check for skipped stitches?
Select correct needle size for the type of work being done.
Make sure the needle is inserted correctly.
Make sure you are using the correct needle system, See owners manual.
Check for the correct passing of the thread.
Sewing area very dirty, remove needle plate and clean.
Check bobbin case for defects, replace with new one.
Check hook timing. See owner’s manual.

How can I avoid oil stain on the material?
Use a piece of paper towel clean around the needle and presser bar bushings as often as needed.
Remove the needle plate and wipe off any excess oil accumulated on the plate.
Clean up oil soaked lint accumulated on the feed dog.
