Consew Home Sewing Machines


Consew P1565RBL-25-7DD Double Needle Walking Foot Machine w/ Split Needle Bar and KD table 220Volt

Consew, P1565RBL-25-7DD, Double, Needle, Walking, Foot, Machine, w/ Split, Needle, Bar, and, KD table, 220Volt

Consew P1565RBL-25-7DD Double Needle Walking Foot Machine w/ Split Needle Bar and KD table 220Volt
Our Price: $6,699.99
Prices are subject to change, and only current prices will be honored.

Availability: Please contact us for availability.
Condition: New In Box

Features

Two-Needle Machine with Split Needle Bar for Angular Stitching. High Speed, Direct Drive, Walking Foot, Lockstitch Machine. Comes in 14" 18" and 25" workspace (see catalog sheet.)
This 25" Long-Arm version comes with full auto functions (-7DD has automatic thread trim)
(also available: -DD without automatic thread trim)

Currently Available in 220VAC Version ONLY.

Applications:
  • Designed for automotive, marine, leather, canvas and general upholstery.
  • For sewing light to heavy-weight fabric, canvas, leather, vinyl, synthetics and various laminated and coated materials
  • Designed for stitching such products as auto, boat and furniture upholstery, tarpaulins, covers, awnings, tents, umbrellas, handbags, luggage, travelware accessories, sports and camping equipment, wearing apparel, outdoor clothing, footwear, foundation garments, orthopedic appliances, etc

    Features:

  • Two Needles with Split Needle Bar for Angular Stitching.
  • Large Top Load Bobbins
  • 25" Long Arm
  • Built-in Bobbin Winder
  • Walking Foot
  • Climbing Device
  • Roll-In, tucks the top thread under fabric when it starts!
  • Automatic Foot Lift
  • Automatic Reverse
  • Semi-Automatic Lubrication
  • Automatic Thread Trim (on -7DD only)
  • Servo motor connected direct to top shaft
Extended US Warranty: 90 Days labor on defects in materials and workmanship.
Non-US Warranty: 30 days parts and labor.

Specifications

  • Speed, maximum: 2000 - 2500 spm (* Speed depends on thread, material and operation.)
  • Clearance Under Foot 9/16" (14mm)
  • Needle: 135 x 17 (DPX17)
  • Needle Gauges: 1/4” to 1” (Custom gauges also available)
  • Stitch Length; Max. 9mm Adjustment By Dial
  • Presser Foot Lift By Hand: 9 mm / By Knee: 16mm
  • Lubrication: Semi-Automatic
  • Bobbin: U or S
  • Power: 220 VAC

Consew P1560RBL-25-77DD Double Needle Walking Foot Machine w/ KD table 220Volt

Consew, P1560RBL-25-77DD, Double, Needle, Walking, Foot, Machine, w/ KD, table, 220Volt

Consew P1560RBL-25-77DD Double Needle Walking Foot Machine w/ KD table 220Volt
Our Price: $5,999.99
Prices are subject to change, and only current prices will be honored.

Availability: Please contact us for availability.
Condition: New In Box

Features

Two Needle, High Speed, Direct Drive, Single Needle, Walking Foot, Lockstitch Machine. Comes in 14" 18" and 25" workspace (see catalog sheet.) This is the 25" Long Arm version. Comes with full auto functions (-7DD has automatic thread trim) (also available is -DD without automatic thread trim)

Currently Available in 220VAC Version ONLY.

Applications:
  • Designed for automotive, marine, leather, canvas and general upholstery.
  • For sewing light to heavy-weight fabric, canvas, leather, vinyl, synthetics and various laminated and coated materials
  • Designed for stitching such products as auto, boat and furniture upholstery, tarpaulins, covers, awnings, tents, umbrellas, handbags, luggage, travelware accessories, sports and camping equipment, wearing apparel, outdoor clothing, footwear, foundation garments, orthopedic appliances, etc

    Features:

  • Two Needles
  • Large Top Load Bobbins
  • 25" Long Arm
  • Built-in Bobbin Winder
  • Walking Foot
  • Climbing Device
  • Roll-In, tucks the top thread under fabric when it starts!
  • Automatic Foot Lift
  • Automatic Reverse
  • Semi-Automatic Lubrication
  • Automatic Thread Trim (on -7DD only)
  • Servo motor connected direct to top shaft
Extended US Warranty: 90 Days labor on defects in materials and workmanship.
Non-US Warranty: 30 days parts and labor.

Specifications

  • Speed, maximum: 2000 - 2500 spm (* Speed depends on thread, material and operation.)
  • Clearance Under Foot 9/16" (14mm)
  • Needle: 135 x 17 (DPX17)
  • Needle Gauges: 1/4” to 1” (Custom gauges also available)
  • Stitch Length; Max. 9mm Adjustment By Dial
  • Presser Foot Lift By Hand: 9 mm / By Knee: 16mm
  • Lubrication: Semi-Automatic
  • Bobbin: U or S
  • Power: 220 VAC

Consew 14TU-2345 Thread Freearm Serger, 7.7mm Wide Safety Straight Chain Stitch w/ Overlock, 4mm Wide 2 Needle CoverStitch (same Singer 14U557 Japan)

Consew, 14TU2345, 14TU5432, Freearm, Portable, 4mm "Coverlock", 5 thread, 4-thread, 3-thread, 2-thread, Coverstitch, Safetystitch, Overlock, Machine,(same as, Singer 14U557)

8598: Consew 14TU-2345 Thread Freearm Serger, 7.7mm Wide Safety Straight Chain Stitch w/ Overlock, 4mm Wide 2 Needle CoverStitch (same Singer 14U557 Japan)
Our Price: $499.99
Prices are subject to change, and only current prices will be honored.

Availability: Usually leaves the warehouse in 2-3 business days.
Condition: New In Box

Features

Add Optional Specified Singer 2054 Narrow Shank Serger Needles for Most Singer and Japan Made Model 14U Overlock Sergers & China Clones: Consew, Rex - Size 14 Needles Recommended - Box of 100

Applications:
  • For overedging and trimming various materials from lightweight fabrics such as chiffons, silk, suit lining, tricot, linen, cotton, general dress materials and woolens to heavyweight fabrics such as tweeds, coat cloth, jersey and denim

  • Sew through denim as well as through the sheerest of fabrics without puckering
  • Suitable for overedging such products as jackets, sweaters, dress and sport shirts, overalls, uniforms, jeans, work pants, dresses, jump suits, slips, negligees, pajamas, bathing suits, trousers and coats

  • Suitable for general overedging, cross seaming, plain seaming, pintucking and braiding. You can ornament with pintuck or braid stitching and ornamental overlooking

  • Perfect for sample rooms, alteration rooms, tailor's sops, drapery shops, dry cleaners, department stores, dress makers and the home

    Features:
  • Differential Feed
  • Easy color coded threading
  • Counterbalanced mechanism. Suction cup feet for smooth, vibration-free operation
  • Telescoping thread mast (convenient extension spool holders)
  • Adjustable stitch length dial
  • High-rise looper mechanism with presser foot lift up to 5/32" (4.5mm)
  • Adjustable cutting width. Heavy duty top tungsten-carbide steel knife and lower carbon steel knife ensures sharp, clean cutting
  • Heavy duty top tungsten-carbide steel knife and lower carbon steel knife ensures sharp, clean cutting
  • Easy thread tension control for any thickness of materials and any threads
  • Needle guard prevents the needle from bending or breaking when stitching heavyweight materials such as denim etc.
  • Auto Tension Release
  • Equipped with built-in motor, electronic foot-operated speed control
  • Built-in glare-free sew light, ruler, handle and seam guide
  • Rolled hem capability
  • Removable cloth plate for cylinder operations
Extended US Warranty: 90 Days labor on defects in materials and workmanship.
Non-US Warranty: 30 days parts and labor.

Specifications

Click HERE for Brochure on Consew Model 14TU5432 14TU2345 Portable Coverlock, 5 Thread Safety Stitch Serger

Click HERE for Parts Book on Consew Model 14TU5432 14TU2345Portable Coverlock, 5 Thread Safety Stitch Serger

  • Model: 14TU2345
  • Speed, Max (S.P.M.): 1300*
  • Clearance Under Foot: 4.5mm
  • Stitch Length, Max.: 4mm
  • Overedging Width: 3 - 7.7 mm
  • Coverstitch Width: 4mm
  • Stitch Type: See Chart Below
  • Shipping Weight: 21Lbs

    Specifications:


  • Number of Needles: 2 (Double)
  • Feeding Mechanism: Differential
  • Workspace: Standard Workspace
  • Standard or Full Function: Standard Functions
  • Stitch Type: Coverstitch - Safety Stitch
  • Speed, Max (S.P.M.): 1200
  • Max Stitch Length: up to 4mm
  • Needle Used: HAX1
  • Clearance Under Foot: 4.0 mm
  • Differential Ratio: 0.5 min - 2.0 max
  • Dimensions: Lv.300 mm x W.310 mm x H.320 mm
  • Power: 110 vac (220 optional)
  • Machine Weight: 15.5 lbs. (7.0kg)
  • Shipping Weight: 21 lbs. (9.5kg)
  • Seam Width: Left Needle: 5.2 - 6.7mm
  • Stitch Width, Max.: Right Needle: 3.0 - 4.5 mm
  • Motor: 110 vac (220 available)

CONSEW 1041T Manual Free Hand Free Motion Ornamental Chainstitch Embroidery Sewing Machine, Servo Motor Power Stand, hand operated directional control

CONSEW 104-1T, CONSEW 1041T Manual Free Hand Free Motion Ornamental Chainstitch Embroidery Sewing Machine, Servo Motor Power Stand, hand operated directional control

39953: CONSEW 1041T Manual Free Hand Free Motion Ornamental Chainstitch Embroidery Sewing Machine, Servo Motor Power Stand, hand operated directional control
Our Price: $2,799.95
Prices are subject to change, and only current prices will be honored.

Availability: Please contact us for availability.
Condition: New In Box

Features

OVERVIEW:
The Consew Model 104-1 / 1T is for general use in oramental embroidery stiching and initiating. It is equipped with universal feed movent, an adjustable needle plate and an easy hand operated directional control.

MACHINE APPLICATIONS:
Suitable on such products as wearing apparel, linens, towels, bedspreads, shirts, shop coats, curtains, banners, emblems, blankets, table cloths, coats, and caps
Ideal for use by laundries, camping outfitters, upholsterers, drapery shops, uniform clothing suppliers, linen suppliers, and sporting goods stores
Chain stitching and drop or moss stitching

MACHINE FEATURES:
Universal feed movement allows free-hand stitching in any shape, form, style or direction
Adjustable needle plate accommodates a variety of needle sizes and threads
Easy-to-change hook needle
Uses all types of thread: cotton, silk, wool, metal, and synthetic
Equipped with device for changing from chain stitch to drop stitch without removing work or rethreading machine
Model 104-100 available for sewing sequins
Extended US Warranty: 90 Days labor on defects in materials and workmanship.
Non-US Warranty: 30 days parts and labor.

Specifications

Spec Sheet (PDF) for for CONSEW 104-1T

Parts and Instruction Manual for CONSEW 104-1T,

Number of Needles: 1 (Single)
Speed, Max (S.P.M.): 800
Stitch Type: Single Needle, Single Thread - Chainstitch - Type 101
Workspace: Standard Workspace
Needle Used: 137x1 TR (Chainstitch) 137x1 SM (Moss Stitch, Drop Stitch)
Max Stitch Length: 11/64" (4.5mm)
Feeding Mechanism: Universal
Needle Bar Stroke: 9/16" (14mm)
Presser Foot Lift: 3/16" (5mm)
Feed: Universal Feed Movement
WorkSpace: 10-1/4" (260mm)
Bed Size: 7-3/4" x 16-3/8" (197mm x 416mm)



You Tube Videos on Consew 104-1T

Google Videos on Consew 104-1T

AllBrands Repair Service Portable Sewing Serger Quilt Embroidery Machines Minimum Charge $199.99 Mech, $299.99 Electronic, $399.99 Ind/Comm+Parts/Ship

Repair, Sewing Machine Repair, Serger Repair, Embroidery Repair, Service, sewing machine service, Allbrands, Home Sewing, Embroidery Machine, Repair Service, Miminum $q149, Charge Plus, $25 Return, Shipping, Plus Mechanical Adjustments, and Parts, Est

33263: AllBrands.com Repair Service		 Availability: Advance Orders Only. Please review the product description for complete details.
Condition: Retail

Features


Allbrands.com has over 70 years of combined factory-trained mechanics experience in servicing portable sewing, serger, quilting, and embroidery machines. We now have premium professional repair services available on your sewing machines in-store or by mail.

For Portable Mechanical Sewing Machines without any electronics on board Minimum $199.99 Charge +$25 for Return Ship +Parts and Installation Labor. Minimum $299.99 charge for Portable Computer, Embroidery or Serger machines. Minimum $399.99 plus Freight for Multi Needle, Industrial, or Longarm machine heads. (do not send stands)

We are the Sewing Machine Doctors with a motto of Fix it Right The First Time with a warranty of 30 days on mechanical and electronic adjustments, not recleaning.
.
We Service AllBrands of Portable Machines: Brother, Babylock, Bernina, Elna, Juki, Kenmore, Necchi, Riccar, Pfaff, Singer, Viking, White, Simplicity.

Your sewing machine is your baby. We want to help you ensure the best quality stitches on your sewing, quilting, embroidery, or serger machine, that are well adjusted and running smoothly!

Review our simple 3 step process below to get started! Or, Click HERE to Email Attn: [email protected] or general mailbox Attn: [email protected] if you have any questions or want to send pictures, prior to placing your order

Mail-in or Ship in Service Plan for all portable home sewing and embroidery machines. Here is how the program works.

*$199.99 +25.00 Return Shipping Cost if mail order: on Basic Mechanical Portable Sewing Machines.

*$299.99 +25.00 Return Shipping Cost if mail order: Computerized Sewing, Embroidery Machines,Sergers, Portable Blind Hem Machines.

*$399.99 +Pallatized Freight Return Shipping Cost if mail order: on Multi Needle Embroidery, Industrial Sewing Machine Heads, and Long Arm Quilting Machine heads.

Step 1. Purchase the 149.99 dollars minimum charge repair service above plus 25 dollars added for our prepaid and insured return shipping costs in USA 48 States. $100 Upcharge for Electronic, Embroidery or Serger. $200 upcharge for Mulit Needle, Industrial, or Longarm Quilting Machines. We will email you an Authorization Number to put on the outside of the box for easy identification.

Step 2. Ship your machine insured to Allbrands.com, Attn: Service Department, 20415 Highland Road, Baton Rouge, La. 70817. Pack in original carton with all styrofoam and double boxed, or wrap in 5" of heavy bubble wrap and double boxed. Include your foot control, bobbin case, bobbin, power cord, thread, needles and fabric samples, hooped fabric with stabilizer, copies of any prior repair tickets, printouts of our email communication, order confirmation, and any written documents regarding the sewing problems you are having with your machine.

Step 3. We will service and ship your repaired machine back pre-paid and insured. If mechanical adjustments or parts are needed, our mechanics will email or call you for approval of estimates above our minimum service charges. Our charges includes removing covers, cleaning, oiling, replacing covers, and balancing thread tension in sew off. Our average repair bill includes and average of 2 mechanical or electronic adjustments

If your machine cannot be repaired or you do not want to pay for any additional parts or installation required,
the 25 dollar prepaid shipping charge will be used to return your portable machine to you un-repaired.

Why do I need to have my sewing machine serviced?

There are many moving parts in a sewing machine and if it moves, it needs lubrication. These days many of the moving parts are housed with computer circuit boards and wires around them. Our Sewing machine technicians are factory trained to maintain and service computerized sewing machines.

For best performance and years of sewing, our technicians suggest you have your machine serviced annually. Below is our 24-Point Tune-Up Checklist and a list of Sewing Machine Performance Tips that our technicians suggest between services.

Sewing Machine Performance Tips:

Keep your machine covered when not using it. Household dust, lint and pet hair can enter your machine in one of it's many openings causing all types of problems.

Keep your machine away from direct sunlight, high/low temperatures and humidity.

Use the right needle for your project and change your needle every 3 to 4 hours of sewing or after every other project. The needle is the major culprit for most sewing problems.

Use good quality thread.

Use bobbins made specifically for your machine and make sure your bobbin thread is wound tight and no loose threads are hanging.

DO NOT SEW OVER PINS! Your needle may break, you could damage the hook or pieces of the needle could fly up into your face.

Do not use canned air on your machine or blow into your machine. The lint is just being pushed further into the machine and you are spraying moisture into your machine which can cause corrosion or damage your circuit boards

Clean the bobbin area frequently. Refer to manual for instructions.

Have a 24 Point Inspection completed, at a qualified repair center, on your sewing machine once a year to keep it performing like new for years to come.
Extended US Warranty: 30 Days labor on defects in materials and workmanship.
Non-US Warranty: 30 days parts and labor.

Specifications

24-Point Tune-Up:

Below is a checklist all technicians complete, if applicable, with every 24-Point Sewing Machine Tune-up performed.

Check Bobbin Winder Mechanism
Inspect Cam Followers & Spacers
Clean Take-Up Lever
Clean & Lube - Pendulum Swing Mechanism
Check Spool Pins, Felts & Caps
Adjust Needle Bar Height
Check Light Bulb
Acuate All Levers & Knobs
Deburr Needle Plate
Polish Hook
Check Timing (Hook & Feed)
Inspect Feed Dogs & Adjust
Clean Bobbin Case
Adjust Bobbin Case Positioner Bracket
Inspect Gears
Check Linkage Bearings & Sleeves
Test Motor Blocks and Pivot Connections
Adjust Motor Belt & Inspect
Check Timing Belt for Wear
Test Tension Knobs & Springs For Torque
Electrical Cords Inspection
Inspect Foot Control Wear
Clean Exterior & Polish
Test Sew On Demo Fabric

Below is what we are taught by sewing machine manufacturers

Completely disassemble sewing machine
Clean out all lint and debris
Degumm and remove old oil and grease
Apply new oil and grease
Check and adjust/reset over 30 settings
Polish all areas in thread path, hook, bobbin case, needle plate, presser foot etc..
Check for any updates update as needed
Reset service programs and calibrations
Balance tensions
Sew it out and fine tune as needed
Then clean exterior of machine

See Videos on maintenance below!

Pinterest.com Maintenance for Sewing Machines

Nancy Zieman Video on 6 Techniques for Sewing Machine Maintenance

Click HERE for Sewing Machine Maintenance Tips from Cooperative Extension Service, New Mexico State University

Click HERE to Email Attn: [email protected] or Attn: [email protected] if you have any questions prior to placing your order

Click HERE for You Tube videos on Home Sewing Machine Maintenance, so if it something simple that you can do at home, it doesn't need to go to the shop

Click HERE for You Tube videos on Home Sewing Machine Repair, so if it something simple that you can do at home, it doesn't need to go to the shop








Click HERE for Zen and the Art of Sewing Machine Maintenance7 Steps To Peak Performance For Your Sewing Machine from Fix Sewing Machine Institute

7 Steps To Peak Performance
For Your Sewing Machine from Fix Sewing Machine Institute

See You Tube Videos on Sewing Machine Repair

Although using a Bernina 1008, most of the information applies to most sewing machines. All sewing machines do better with a little bit of ‘TLC’. Just a bit of a clean up and a drop of oil every now and then does wonders. Keeping your sewing machine clean and lubricated will reduce the wear and tear and keep everything running smoothly.


mizsparrow: How a sewing machine hooks threads into your fabric, on underneath oscillating shuttle sewing machines


Quick Guide for Sewing Machine Top Tension pdf by Cindy Needham

DIY: Cleaning Your Vintage Sewing Machine



Sewing Machne Maintenance Tips | National Sewing Circle. Jessica Giardino provides extremely beneficial tips on how to perform maintenance on your own sewing machine. Learn how to make repairs to your machine at home to save money and stitch happily. Find out how often you should perform maintenance on your machine as well as what tools you may need to help clean your sewing machine.


Singer Blog on Troubleshooting Tips

Sewing Machine Lubricants

How to Clean and Oil Your Bernina Sewing Machine.
Did you know you need to oil your Bernina sewing machine every 3 - 5 bobbins? You do! To many people neglect oiling their Bernina sewing machine or even worse have been told NOT to oil their sewing machine.

Bernina We All Sew Blog on How to Clean and Maintain Your Sewing Machine

Bernina ACHINE MAINTENANCE FREQUENTLY ASKED QUESTIONS: CLEANING AND OILING


Bernina Users - THIS IS NOT LINT! ***DO NOT REMOVE***



Video Tip: Avoid Thread Bird Nesting from Top Thread balling up underneath the fabric


15 Reasons Why a Sewing Machine Needle Breaks by Sewing Mastery, Heirloom Creations
A sewing machine needle can break for a variety of reasons. Sometimes it is operator error and sometimes it can be the wrong needle for the fabric. If you have experienced a rash of broken needles within a short amount of time, see if one of the following situations relates to you and learn how to overcome the problem.

Thread Catches on the Spool
Some thread brands have these lovely thread holders notched in the edge of the spool. Handy, yes, but if the thread spool is laying on its side it can catch in the groove, pull the thread tight and SNAP the sewing machine needle. To avoid this, be sure to stand this type of thread up using a vertical thread pin.

Thread Wraps Around the Spool Cap:
For threads that need a horizontal spool pin and a spool cap to hold them in place, the thread can get caught between the thread spool and the cap. Though a spool cap is necessary to keep the thread in place, it must be pushed into place so there is no gap for the thread to catch between the two. This is one of the reasons I prefer using a thread stand.

Whitening Your Yellowed Vintage Sewing, Serger, Embroidery, Quilting and Knitting Machine Plastic ABS Parts! (RetroBrite) This is a video demonstrating how I have whitened some ABS plastic pieces of a vintage knitting machine that had become yellow with age and exposure to UV light. This is the RetroBrite procedure, which you may have seen being used on old video game consoles, sneakers, computers, and other older ABS plastic products. Works very well, is inexpensive, and really helps restore these old beauties to their former glory.

Machine Maintenance with Gary | Echidna Sewing



How to oil your sewing machine needle bar, prevent costly repairs DIY simple fix drop in bobbin case. Jeff shows on Brother made Babylock Destiny


How to Remove Thread from the Take-Up Lever & Remove Fabric Stuck in the Needle Plate
Have you ever started sewing and the thread pulled out of the needle? Doug shares how to fix this common issue so you can return back to stitching. Plus, learn how to remove fabric that gets stuck on the machine after you have completed sewing.

Singer Sewing Tips 101: Maintenance and TLC

Singer 550 All 7 Serger Feet Snap-On for Singer 14SH654, 14SH644, 14CG754, 14U554, 14U555, 14U557, Consew 14TU5432 14TU2345, Pfaff 4870, Yamata FY14

Singer 7 feet for 14SH764, 14SH654, 14CG754, 14U557 & Consew 14TU5432, 14TU2345, Sergers: Beading, Blindhem, Cording, Elastic, Shirring & Yarn Application
Our Price: $199.99
Prices are subject to change, and only current prices will be honored.

Shipping: Free Ground Shipping to the Contiguous USA
Availability: Usually leaves the warehouse on the next business day.
Condition: New In Box

Features

  • Price for all the feet that fit the Singer 14SH764, 14SH654, 14CG754, 14U555, 14U557, Consew 14TU5432

  • Includes Beading Foot, Blind Hem Foot, Corded Piping Foot, Elastic Foot, Shirring Foot, and Yarn Application Foot
Non-US Warranty: 30 days parts and labor.

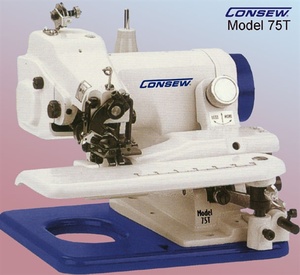

Consew 75T Blindstitch Hem Chain Stitch Hemmer Machine, Most Popular Portable Professional Model for Garment Hems, Replaces Tacsew T500 and BLST NLA

Consew, MH75T, 75T, Portable, Single, Thread, Blind, Stitch, Hem, Sewing, Machine, Skip, Stitch, Curved, Needles, Knee, Lever, Swing, Down, Cylinder, Arm

Consew 75T Blindstitch Blind Hem Chain Stitch Hemmer Machine
Our Price: $299.99
Prices are subject to change, and only current prices will be honored.

Availability: Usually leaves the warehouse in 2-3 business days.
Condition: New In Box

Features

Consew 75T Portable Blind Hem Stitch Hemmer Machine Includes 1200 SPM, 3.5 SPI, 2:1 Skip Stitch, Curved Needle, Knee Lever for Swing Down Cylinder Arm, Metal Swing Away Work Plate, Foot Control, Weighs 25 Pounds.

*Consider Adding Optional Organ Box of 50 LWx6T 29-34 Curved, Assorted 5 Sizes of Needles, Portable Blind Hem Stitch Machines: Tacsew, Reliable, US StitchLine, Yamata, Gemsy, Rex, Tony, & Huei Hwang Manufacturer. Must be selected from Recommended Accessories Below.

For sewing all types of light to medium-weight materials including synthetics, knits and woolens. Typical sewing operations include pant cuffs, felling slack bottoms, hemming dresses, skirt and coat bottoms, light to medium (not heavy) draperies, negligees, undergarments, lapel padding, blouses and sleeves. Suitable for felling operations requiring a skip stitch to simulate hand stitching. Ideal for alteration rooms, clothing rentals, dry cleaners, department stores, dressmakers and home use.

  • Single Thread
  • Chainstitch Blindstitch
  • With Swing-Down Cylinder Arm
  • Swing Plate
  • Skip And Non-Skip Stitch Lever
  • Adjustable Thread Tension
  • 1 To 1 Non-Skip Stitch And
  • 2 To 1 Skip Stitch
  • Portable Home Use Sewing Machines for Apparel Tailoring and Alterations only

    Applications:
  • Ideal for alteration rooms, tailors, clothing rentals, dry cleaners, department stores, dressmakers and home use
  • Perfect for sewing all weights of materials including synthetics, woolens, cottons, fabrics and knits
  • 1-to-1 Non-Skip Stitches: typical operations include felling edge tapes, bottoms of trousers, cuffs, wigging in sleeves, facings to canvas and knit goods, turned-up bottoms of fully lined coats, padding collars and lapels, and reinforcing trouser seats
  • 2-to-1 Skip Stitch: for hemming dresses, skirts, slacks, trousers, sportswear, ladies coats, draperies, blouses and other articles
  • Suitable for felling operations requiring a skip stitch to simulate hand-stitching
  • 2-to-1 skip stitch is recommended for synthetics and other lightweight materials and 1-to-1 for heavier cotton, woolen and linen goods

    Please note: Base color of this unit may vary
Extended US Warranty: 90 Days labor on defects in materials and workmanship.
Non-US Warranty: 30 days parts and labor.

Specifications

Speed, Max (S.P.M.): 1200* Stitches Per Minute
Stitch Length, Max.: 3-1/2 SPI Stitches Per Inch (7mm)
Curved Single Needle: LWX 6T
Looper: 4039, 471
Cylinder Diameter: 1-5/8 (40mm)
Work Space: Needle to Arm 4" (100mm)
Speed, Max (S.P.M.): 1000
Stitch Type: 103

  • Stitch penetration and stitch length variability give you big-machine features in a light-weight, compact, and fully portable unit
  • Heavy-duty motor and rheostat speed control
  • Swing down cylinder arm allows for easy in and out of heaviest materials
  • Swing away work plate
  • Used for sewing all types of light to medium-weight materials including synthetics, knits and woolens
  • Typical sewing operations include pant cuffs, felling slack bottoms, hemming dresses, skirt and coat bottoms, draperies, negligees, undergarments, lapel padding, blouses and sleeves
  • Suitable for felling operations requiring a skip stitch to simulate hand stitching
  • Ideal for alteration rooms, clothing rentals, dry cleaners, department stores, dressmakers, and home use

    Click HERE for Short Generic Instruction Book Operating Manual User Guide for Table Top Portable Blindstitch Sewing Machines

    Click HERE for Longer Generic Instruction Book Operating Manual User Guide for Table Top Portable Blindstitch Sewing Machines









    Blind Hemmer Ending Stitch Techniques
    I show how I now end my blind hemmer stitches. In the past I always used the old technique of raising the needle to its' highest position and releasing the pressure foot and jerking the fabric back quickly to break the thread. This led to size 10 needles skipping stitches sooner than I thought they should. I contacted the mfg of my machine and they told me to use the technique I show in this video. Since I've gone to it my #10 needles are lasting much longer. :) The machine shown is an Industrial Consew made in Japan back in the 1970s. Kevin Sews Published on Jul 2, 2014

Consew 14TU854 Freearm Serger Overlock 3-4 Thread, Roll Hem, Diff Feed (Singer 14U)

Consew, 14TU854, Portable, 14SH654, 14SH644, 14CG754, 14u554, 14U555, 14U557, and Consew 14TU5432 14TU2345, Overlock, Serger, 4, Thread, 2, Needle, Adj., Stitch, Length, Dial
Our Price: $319.99
Prices are subject to change, and only current prices will be honored.

Availability: Usually leaves the warehouse in 2-3 business days.
Condition: New In Box

Features

*Save $200 more on purchase of 12 Superlock Serger Cone Threads, Deluxe Carrying Case, Arrow Table and Chair, plus 3-10 Year Nationwide Extended Warranty Enhancement: Repair Parts & Labor, Power Surg, Transfer Owner, No Lemon, Replace or Buyout% on Non Commercial Use in USA.

Portable, multi-function, overlock stitch machine. 4 thread, 2 needle (mock safety stitch) with flip-up carrying handle. Flat bed or cylinder bed. Locking stitch length regulator, built-in sew light. Electronic foot operated speed control UL listed / CE approved 110V.

The Consew 14TU854 Overlock Machine puts every feature or capability you could want right at your fingertips. It makes those decorative and professional touches easier than you ever thought they could be.

This sewing machine is ideal for overedging and trimming materials from lightweight fabrics such as chiffon and silk to heavyweight fabrics such as tweed, denim, and jersey. You can ornament with pintuck or braid stitching and ornamental overlocking. The machine sews through denim as well as through the sheerest of fabrics without puckering. In addition, it comes with easy-to-adjust controls and a telescoping thread mast with extension spool holders. You won't need to worry about your sewing needles breaking because the machine has a needle guard to prevent bends and breaks. Equipped with a built-in glare-free sewing light, ruler, and a tungsten-carbide steel cutting knife, this machine is incredibly user-friendly. It even has color-coded threading and suction cup feet for smooth, vibration-free operation.

This practical sewing machine is perfect for sample rooms, alteration rooms, tailor shops, dry cleaners, department stores, home use, and drapery shops. If you're ready to take your sewing to a whole new level, then you are ready for the Consew Overlock.

  • Two individually adjustable and replaceable loopers
  • Ideal for overedging and trimming materials from lightweight fabrics such as chiffon and silk to heavyweight fabrics such as tweed, denim and jersey
  • Will not pucker fabrics
  • Suitable for cross seaming, plain seaming, pintucking, and braiding
  • Perfect for sample rooms, alteration rooms, tailor shops, dry cleaners, department stores, home use, and drapery shops
  • Easy color-coded threading
  • Equipped with built-in motor, electronic foot-operated speed control
  • Adjustable cutting mechanism made of heavy duty tungsten-carbide steel for sharp, clean cutting
  • Telescoping thread mast with extension spool holders
  • Adjustable stitch length dial
  • Built-in glare free sew light
  • Electronic speed controls allow for stitch-by-stitch operation
  • Suction cup feet for smooth, vibration-free operation
  • Four thread, two needle
  • Stitch length maximum of 1-4 mm
  • Standard distance between needles is 2.2 mm
  • Needle #2054
  • Stitch type is 514
  • Maximum presser foot lift is 6 mm
  • Net weight is 14.7 pounds

    For overedging and trimming various materials from lightweight fabrics such as chiffons, silk, suit lining, tricot, linen, cotton, general dress materials and woolens to heavyweight fabrics such as tweeds, coat cloth, jersey and denim. Sew through denim as well as through the sheerest of fabrics without puckering. Suitable for overedging such products as jackets, sweaters, dress and sports shirts, overalls, uniforms, jeans, work pants, dresses, jump suits, slips, negligees, pajamas, bathing suits, trousers and coats. Suitable for general overedging, cross seaming, plain seaming, pintucking and braiding. You can ornament with pintuck or braid stitching and ornamental overlocking. Perfect for sample rooms, alteration rooms, tailor’s shops, drapery shops, dry cleaners, department stores, dress makers and the home
Extended US Warranty: 90 Days labor on defects in materials and workmanship.
Non-US Warranty: 30 days parts and labor.

Specifications

Click HERE for Parts List on Consew 14TU854 Serger

Speed, Max. S.P.M. (stitched per minute): 1300
Clearance Under Foot: 15/64" (up to 6mm)
Stitch Length, Max: 24 s.p.i. (1mm - 4mm)
Needle: #2054, 10#-16#
Overedging Stitch Width: (3-6.7 mm)
Max. Stitch Length: (1
  • 4mm)
    Max. Presser Foot Lift: (4.5mm)

    Number of Needles 1 (Single)
    Feeding Mechanism Differential
    Workspace Standard Workspace
    Standard or Full Function Standard Functions
    Speed, Max (S.P.M.) 1200
    Stitch Type 514
    Max Stitch Length 4mm
    Presser Foot Lift 15/64" (6mm)
    Needle Used HAX1
    Clearance Under Foot 4mm
    Overedging Stitch Width (3-6.7mm)
    Cutter Width Lft: 5.2
  • 6.7mm - Rgt: 3.0
  • 4.5mm
    Standard Distance Between Needles (2.2mm)
    Differential Ratio 1:05
  • 1:2
    Dimensions L.300 x W.310 x H.320 mm
    Gross Weight in Shipping Carton 20.9 lbs. (9.5kg)
    Net Weight 15.4 lbs (7.0kg)
Copyright © 1995-2024 AllBrands.com.
SewingMachineStore and SewingMachineStore.com are property and trademarks of AllBrands, LLC, dba AllBrands.com. All Rights Reserved.
